Welding Table Fixtures & Tooling
Precision welding table fixtures are what turn a flat surface into a true fixturing system.
From clamps, ball lock pins, squares, and stops, every component plays a role in accuracy, repeatability, and workflow speed.
Why Choose Tenaxis Tables?
Faster Setups
Drop clamps anywhere on the grid and lock parts in place in seconds, not minutes.
Built-In precision
Use holes, stops, and squares as reference points so every part lines up the same way, every time.
One Complete Ecosystem
Our tooling is made for Tenaxis tables and fully compatible with any System 28 welding table brand. So you can mix, match, and expand as you grow.
Complete Your Welding Table System
Choose a fixture kit with your table to unlock the full potential of your setup. These curated kits give you the essential clamps, stops, and squares you need to start fixturing accurately from day one.

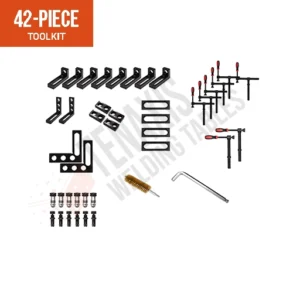

Fixture Kit - Small (42pc)
A practical starter set with the core clamps and stops needed for everyday fabrication and simple setups.

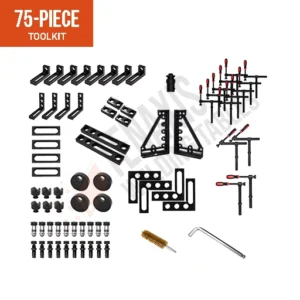

Fixture Kit - Large (75pc)
A versatile kit for busy workshops that need more flexibility, faster setups, and the ability to handle varied jobs.

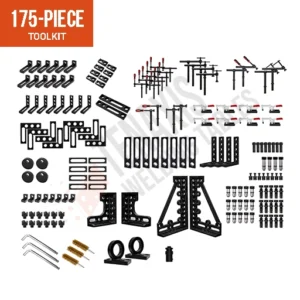

Fixture Kit - XL (175pc)
Built for high-mix workflows and complex assemblies where multiple fixtures and positioning options are essential.

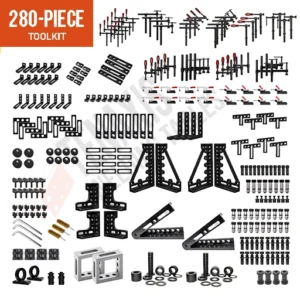

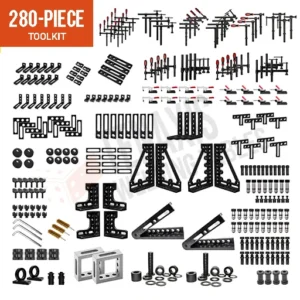

Fixture Kit – XXL (280pc)
A full-scale fixturing solution for production environments running repeat work and multi-part setups.

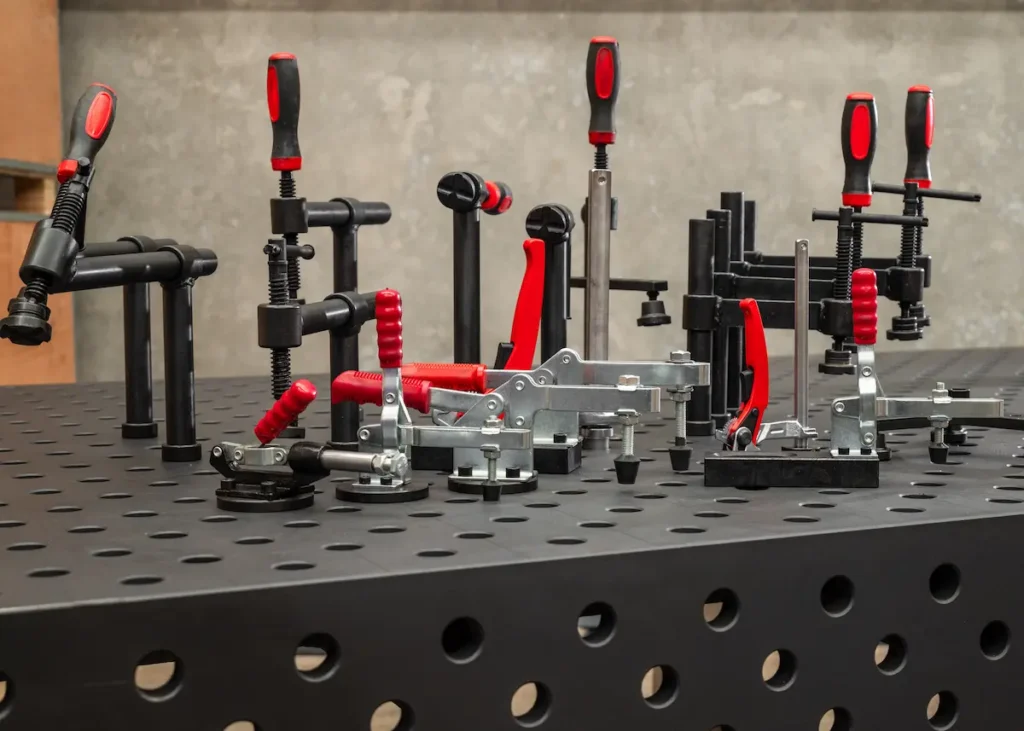

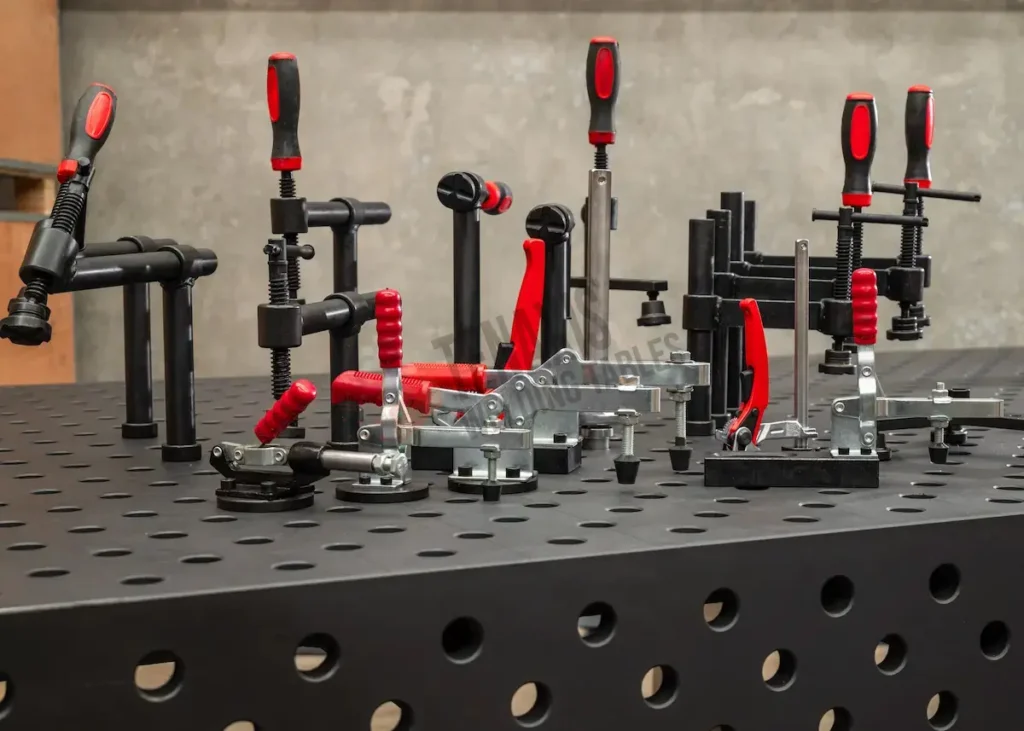

Clamps That Lock Your Workflow in Place
Every clamp in our system helps you position, hold, and repeat setups with speed and precision. Our welding table clamps are designed to integrate seamlessly with modular welding table fixtures, allowing precise part positioning across the full grid.

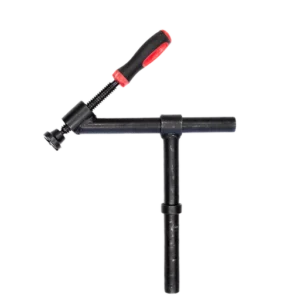

Screw Clamps
Reliable, high-pressure clamping for heavy parts and jobs that need maximum holding force and stability.

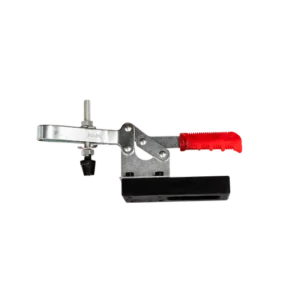

Toggle Clamps
Fast, repeatable clamping with a quick lever action. Ideal for production runs and repetitive setups.

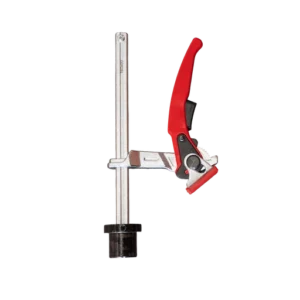

Fast Clamps
Quick-adjust clamps that let you secure parts in seconds, perfect for frequent repositioning during fabrication.

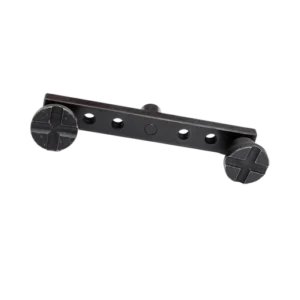

Bridge Clamps
Span over uneven or awkward workpieces, applying downward pressure while keeping your setup accessible.
Pins That Set Your Reference Points
Fixture Pins help you align, secure, and protect your setup with confidence.
Locking Pins
Our ball lock pins are designed for fast, secure positioning in welding table fixtures. Each quick release locking pin expands into the hole grid, locking accessories firmly in place without tools
Location Pins
Create accurate reference points for aligning parts, squaring frames, and repeating precise setups.
Plug Pins
Fill unused holes to keep spatter out, protect the grid, and extend the life of your table surface.
Build Up. Space Out. Lock In.
Blocks and extensions let you raise, offset, and join parts in ways a flat table alone can’t - giving you full 3D positioning control.

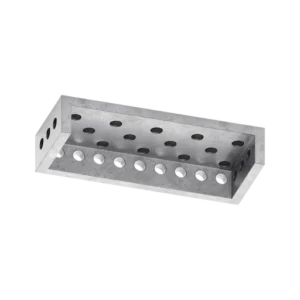

L-Shape Blocks
Create strong 90° supports for holding parts upright, squaring frames, and building vertical setups.
U-Shape Blocks
Grip and support tubing, box sections, and awkward profiles while keeping edges aligned.
Corner Extension
Join blocks and fixtures together to extend your setup and build larger, rigid fixturing structures.

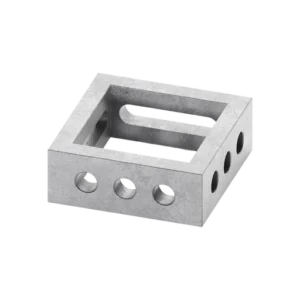

Frame Blocks
Designed for positioning and supporting frame assemblies with consistent spacing and alignment.
Locating Squares, Stops & Flat Squares
Locating squares, flat squares, and universal stops are precision welding table fixtures designed to create accurate reference points and repeatable setups across your fabrication workflow.
Locating Squares
Precision 90° squares for holding parts upright, aligning frames, and building repeatable setups.

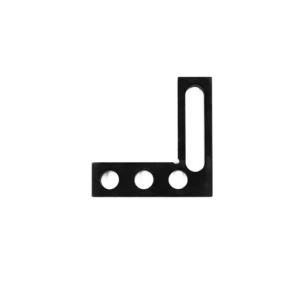

Flat Squares
Low-profile 90° references for precise positioning and repeatable setups.

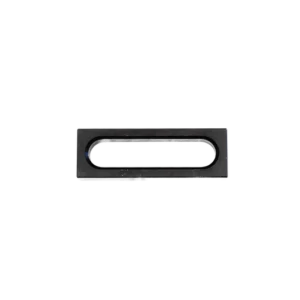

Universal Stops
Adjustable reference stops for fast positioning and repeatable production work.
Supports & Discs
Fine-tune support, height, and positioning for round, angled, and irregular parts.

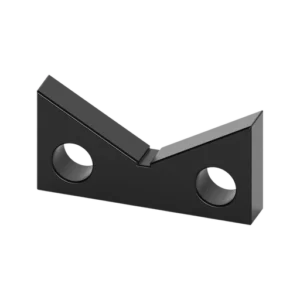

V-Flat Supports
Stable V-shaped cradle for holding round tube and pipe during welding.
V-Square Support
V support with flat reference faces for squaring and aligning round sections.
Available with 2 holes, 3 holes, or slot options.

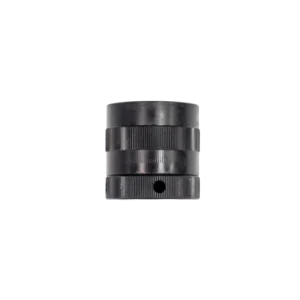

Height Adjustment Device
Micro-adjust part height to match your setup. Perfect for levelling and fine alignment.
Locating Disc
Compact positioning disc for precise reference points. Available in Ø75mm and Ø100mm.

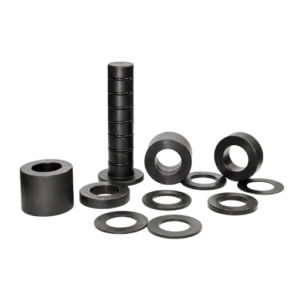

Spacer Set - System 28 (11pc)
Quickly adjust fixture height and spacing with modular spacer rings.
Other Accessories
Add the finishing touches to your welding table fixturing system. Tools that improve setup speed, part support, and workflow efficiency.
Brush
Clears spatter and debris to keep holes and surfaces clean.

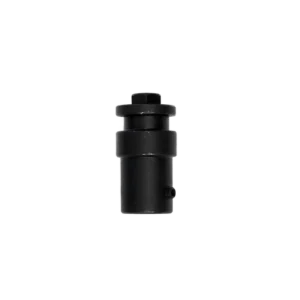

Earth Connector
Reliable grounding point for stable welding.

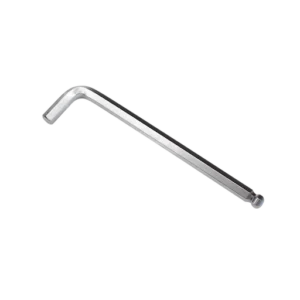

Hex Key
For quick tightening and fixture adjustments.

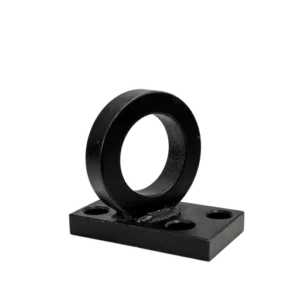

Table Lifting Lug
Safe lifting point for moving heavy tables.

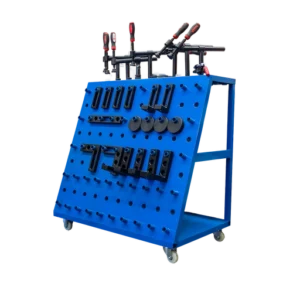

Tool Cart
Mobile storage for clamps, pins, and tooling.
Let’s find the right setup for your shop.
Answer a few quick questions and a Tenaxis specialist will help you narrow down the best table and configuration for your work.
